Walkie Pallet Jack Battery Systems

Safe and long-lasting lithium-ion battery systems engineered to maximize uptime, productivity and total cost savings for walkie pallet jack operations.

Reliable, Long-Life Power for High-Throughput Material Handling

Electrovaya’s Walkie Pallet Jack Battery Systems deliver safe, long-lasting performance using UL2580-listed lithium-ion ceramic technology. With industry-leading cycle life, rapid charging capabilities and high round-trip efficiency, these systems increase productivity, reduce downtime and lower total cost of ownership for walkie pallet jack operations in demanding warehouse and distribution environments.

THE ELECTROVAYA ADVANTAGE

Proven Advantages for Walkie Pallet Jack Operations

From certified safety and exceptional cycle life to rapid charging and lower cost per cycle, Electrovaya’s battery systems deliver reliable, high-efficiency power for demanding material handling environments.

Certified Safety

UL2580 listed cells protected using proprietary lithium-ion ceramic technology and leading safety systems​

Superior Cycle Life

Best-performing NMC lithium-ion cells in the industry, backed by third-party testing data​

Increased Productivity

Longer run times, higher round-trip efficiency and faster charge rates with opportunity for rapid charge​

Lowest Total Cost

Longest cycle life in the industry with lowest cost-per-cycle technology​

Proven Track Record

Infinity technology powers more than 30,000 motive vehicles​ worldwide.

See it in Action

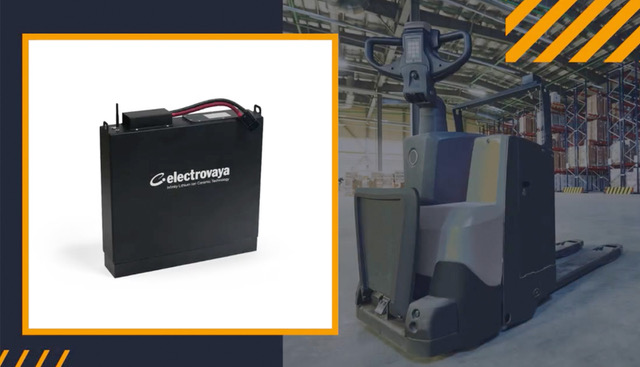

Watch as our Walkie Pallet Jack Battery System is used in our warehouse

Watch Performance Demo

Technical Details and Specifications

Specifications Details
Voltage Range (V) 22.4, 25.9, 28.7 V
Weight (min) 200 lbs (91 kg)
Battery Capacity (Ah) 108 Ah / 2.8 kWh

162 Ah / 4.1 kWh
Operational Temperature Discharge: -30 °C to 55 °C / Charge: 0 °C to 55 °C

Discharge: -22 °F to 131 °F / Charge: 32 °F to 131 °F
Cycle Life Up to 15000 cycles
Connectivity CAN, Wi-Fi, Remote Monitoring Support
Charger Onboard 650W or 1200W output
Warranty Up to 6 years
WiFi Enabled for remote monitoring and data logging
Charger Compatible with multiple charger vendors; CANBus and WiFi charger control
Warranty Up to 8 years

Download Datasheet

Download the product datasheet for a PDF version of the product’s specifications, uses and advantages.

Long-Lasting Batteries to Power Critical Operations

Our experts can help you select the right Electrovaya solution for safer operation, lower cost of ownership and maximum system uptime.

Contact Sales
Infinity Battery Technology
Infinity Battery Technology

Ceramic-Based Lithium-Ion Technology Built for Unmatched Safety and Long Life

Built on a proprietary full ceramic separator and advanced lithium-ion architecture, Electrovaya’s Infinity Battery Technology delivers exceptional safety, industry-leading cycle life and reliable performance in demanding environments.

Learn More
