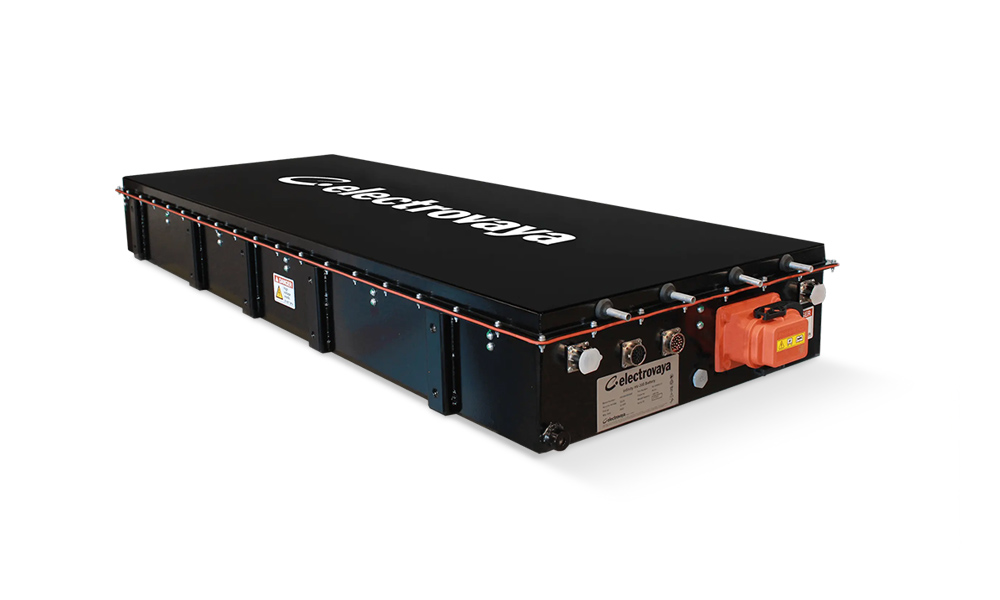

High Voltage Infinity Battery

Engineered for extreme duty, our high-voltage lithium-ion systems deliver exceptional safety, ultra-long cycle life, fast charging, and reliable performance across some of the world's most demanding sectors.

High-Voltage Batteries for Large-Scale Transportation

Infinity High Voltage System delivers safe, durable, mission-ready power for electric buses, trucks, mining vehicles, and defense platforms. Built on UL2580-listed ceramic technology, these systems provide exceptional thermal safety, ultra-long cycle life, and reliable performance in the harshest operating conditions. Fast charging, extended range, and maintenance-free operation maximize uptime, while robust system integration and intelligent controls create a proven, cost-efficient energy solution for the most demanding high-voltage applications.

APPLICABLE INDUSTRIES

Trucks

Trucks

Defense

Defense

ESS (Energy Storage)

ESS (Energy Storage)

Construction

Construction

Technical Details and Specifications

HV‑300 HV‑700
Voltage Range (V) 288 - 369 576 – 738
Configuration 90S2P 180S2P
Width Dimension (mm) 1540×610×180 1740×763.8×298.8
Weight (kg) 238 420
Battery Capacity (Ah) 108 108
Total Energy Nominal (kWh) 36 71.92
Energy Density 151 Wh/kg | 213 Wh/L 171 Wh/kg | 181 Wh/L
Cell Technology Electrovaya Infinity Cell
Charging Time 45 mins fast charging capability**
Operational Temperature Discharge: -30 °C to 55 °C / Charge: 0 °C to 55 °C Discharge: -22 °F to 131 °F / Charge: 32 °F to 131 °F Operations at 55°C-60°C (131°F-140°F) allowed for ≤ 24 hrs
Cycle Life 14000 cycles**
WiFi Enabled for remote monitoring and data logging
Charger Compatible with multiple charger vendors; CANBus and WiFi charger control
Warranty Up to 12 years
Certification UN 38.3, ECE R100.3 (Planned)

Download Datasheet

Download the product datasheet for a PDF version of the product’s specifications, uses and advantages.

Long-Lasting Batteries to Power Critical Operations

Our experts can help you select the right Electrovaya solution for safer operation, lower cost of ownership and maximum system uptime.

Contact Sales
Infinity Battery Technology
Infinity Battery Technology

Ceramic-Based Lithium-Ion Technology Built for Unmatched Safety and Long Life

Built on a proprietary full ceramic separator and advanced lithium-ion architecture, Electrovaya’s Infinity Battery Technology delivers exceptional safety, industry-leading cycle life and reliable performance in demanding environments.
