Infintity Battery Modules

Engineered for high-duty systems, Infinity Battery Modules deliver exceptional safety, ultra-long life, and consistent performance, enabling reliable power across demanding industrial and electric applications worldwide.

Reliable, Long-Life Modules for Demanding Applications

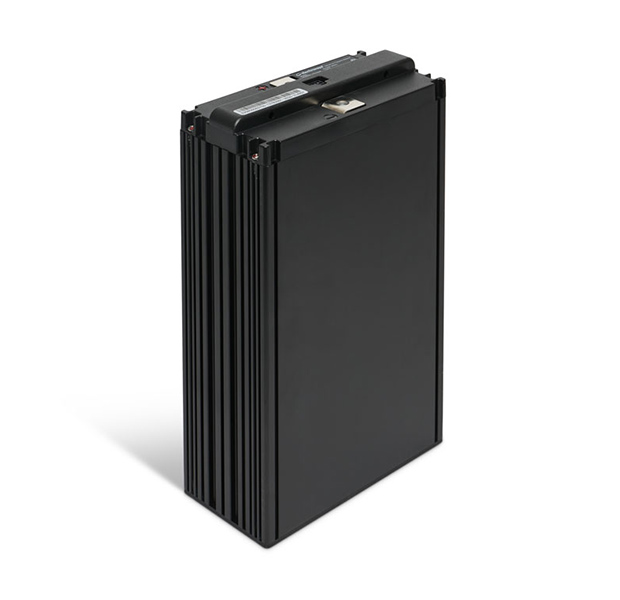

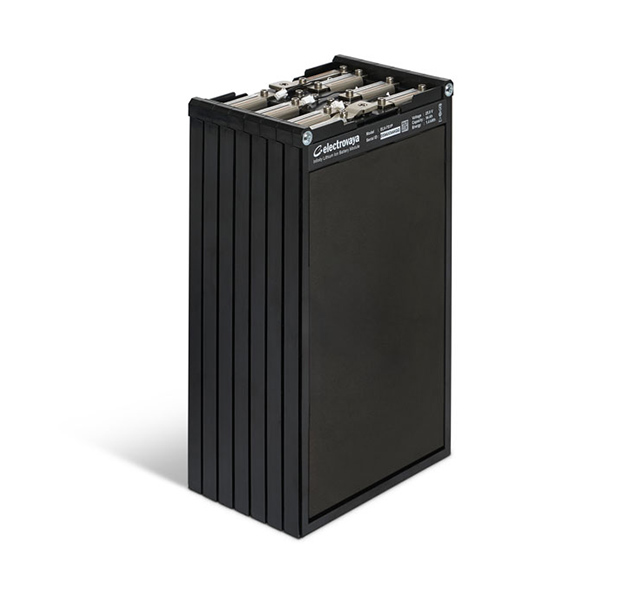

Electrovaya’s Infinity battery modules deliver long cycle and calendar life, exceptional safety and consistent high-quality performance. Built on Infinity lithium-ion ceramic cells certified to UN38.3, UL1642, UL1973 and UL2580, these modules provide the reliable, durable power needed for advanced electric and industrial applications.

APPLICABLE INDUSTRIES

Robotics

Robotics

Airport Ground Support<br>Equipment (GSE)

Airport Ground Support
Equipment (GSE)

Forklift

Forklift

Trucks

Trucks

Defense

Defense

ESS (Energy Storage)

ESS (Energy Storage)

Construction

Construction

THE ELECTROVAYA ADVANTAGE

Designed for Performance, Safety & Long-Term Reliability

From configuration flexibility to superior thermal and vibration performance, Infinity modules ensure dependable operation in a wide range of system designs.

Flexible Configuration

Modules can be combined to support a wide range of heavy-duty system requirements.

Integrated Sensing

Built-in voltage and temperature sensors ensure seamless, accurate integration with the BMS.

Vibration Resistant

Laser-welded tabs and padded frames provide durability and stability in high-vibration environments.

Thermal Management

Integrated heat sinking and thermal padding maintain safe temperatures and consistent performance.

Long Battery Life

Exceptional cycle and calendar life deliver reliable, long-term performance in demanding applications.

Enhanced Safety

Layered protection and continuous monitoring help reduce thermal and electrical risk in demanding industrial applications.

Technical Details and Specifications

Configuration ELV-1S6P ELV-4S2P ELV-7S1P ELV-7S2P ELV-9S2P
Cell Technology Electrovaya EV cell (NMC with full ceramic separator)
Nominal Capacity 324Ah 102Ah 54Ah 108Ah 108Ah
Nominal Energy 1.2 kWh 1.5 kWh 1.4 kWh 2.8 kWh 3.6 kWh
Voltage range (min, nominal, max) 3, 3.7, 4.2 V 12.8, 14.8, 16.4 V 21, 25.9, 29.4 V 21, 25.9, 29.4 V 27, 33.3, 37.8 V
Dimensions (mm) WxDxH 175 x 85 x 280 220 x 68 x 317.5 277 x 160 x 103 277 x 160 x 210 277 x 160 x 262
Weight 7.1 kg 9.8 kg 9.5 kg 15 kg 18 kg
Charge/Discharge C - rate * Continuous: Up to 1C/1C
Pulse: 2C/3C 		Continuous: Up to 0.4C/0.5C
Pulse: 2C 		Continuous: Up to 1C/3C
Pulse: 2C/5C 		Continuous: Up to 1C/3C
Pulse: 2C/5C 		Continuous: Up to 1C/3C
Pulse: 2C/5C
Operational Temperature Discharge: - 30 ° C to 55 ° C / Charge: 0 ° C to 55 ° C
Discharge: - 22 ° F to 131 ° F / Charge: 32 ° F to 131 ° F
Cycle life 14000 cycles*
Warranty 1 year with a 3rd party BMS and up to 5 years with EV - BMS

Download Datasheet

Download the product datasheet for a PDF version of the product’s specifications, uses and advantages.

Long-Lasting Batteries to Power Critical Operations

Our experts can help you select the right Electrovaya solution for safer operation, lower cost of ownership and maximum system uptime.

Contact Us
Infinity Battery Technology
Infinity Battery Technology

Ceramic-Based Lithium-Ion Technology Built for Unmatched Safety and Long Life

Built on a proprietary full ceramic separator and advanced lithium-ion architecture, Electrovaya’s Infinity Battery Technology delivers exceptional safety, industry-leading cycle life and reliable performance in demanding environments.

Learn More
